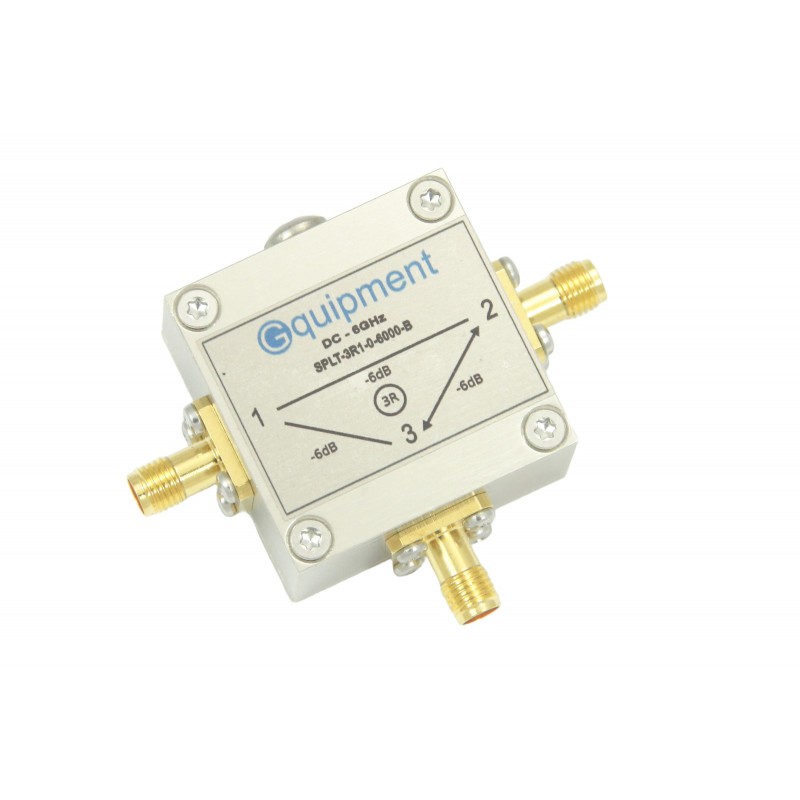

RF Power splitter 3R, 6dB, 0-6GHz
Reference: SPLT-3R1-0-6000-B-NF
Two way power splitter / combiner, based on a three-resistor configuration. Insertion loss and isolation all equal to 6 dB.
Used in the lab to split and / or combine RF signals. Operating range from DC to 6 GHz
5 Items
More info
Features
- Two way splitter /combiner using three SMA ports
- The module uses an CNC machined aluminum enclosure
- Excellent VSWR on all three RF ports
- 50 ohm system
Key specifications
- Resistive splitter in 3R configuration
- Frequency range : 0 - 6 GHz
- Insertion loss and isolation : 6 dB
- Return loss > 20 dB
- Maximum power : 0.3 W
- Maximum voltage : 50V
Applications
- Splitting and combining RF signals
- Test and measurement systems
- RF lab equipment
Download
Splitter in a 3R configuration, 0-6000 GHz, revision B - datasheet
Download (334.45k)
