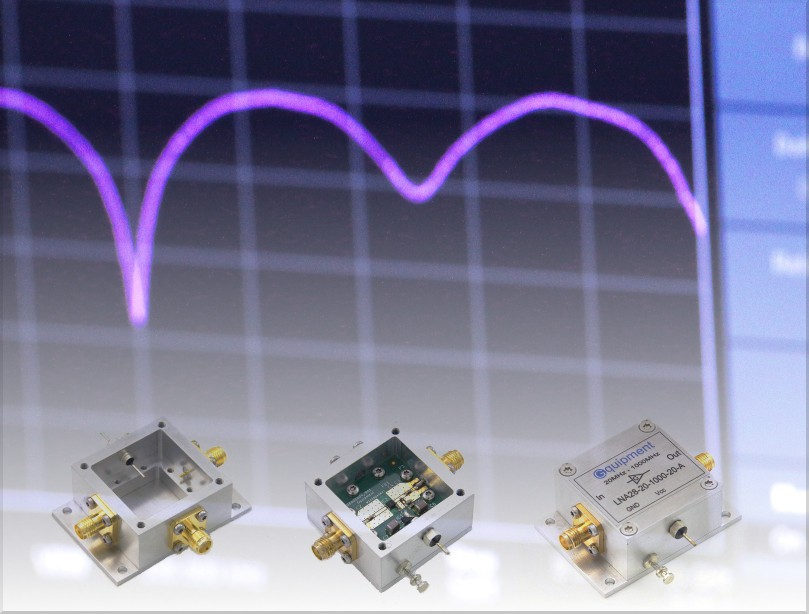

Specialized RF & Microwave Modules
- ▪ Low Noise Amplifiers
- ▪ Power splitter / combiners
- ▪ Aluminium RF enclosures
- ▪ Directional couplers

Categories

RF & microwave products
- Enclosures
  - Accessories
- Modules

Blog categories

Blog

Popular

Quick view
€63.00 In Stock

RF Enclosure Mini - Aluminium - With Mounting Flange

Universal aluminium RF enclosure.

Designed for radio-frequency applications, test systems, and rapid prototyping.

SMA connectors and both bottom- and top-cover are easily (dis)assembled to support easy exchange of PCBs for experimentation purposes.

This module features two mounting flanges.

€63.00

Add to cart More

In Stock
Quick view
€59.00 In Stock
Power splitter 2R -6dB 0-3GHz
- Resistive splitter in 2R configuration
- Frequency range : 0 - 3 GHz
- Insertion loss (S21, S31) : 6.5 dB
- Isolation (S23) : 12 dB
- Return loss at P1 > 20 dB
- Maximum power : 0.2 W
- Maximum voltage : 50V
€59.00

Add to cart More

In Stock
Quick view
€59.50 In Stock
Power splitter 2R -6dB 0-3GHz with mounting flange
- Restistive splitter in 2R configuration
- Frequency range : 0 - 3 GHz
- Insertion loss (S21, S31) : 6.5 dB
- Isolation (S23) : 12 dB
- Return loss at P1 > 20 dB
- Maximum power : 0.2 W
- Maximum voltage : 50V
This module features two mounting flanges.
€59.50

Add to cart More

In Stock
Quick view
€69.00 In Stock
Power splitter MT1 -3dB 0.1-100MHz
Wilkinson splitter based design
- Bandwidth : 0.1 - 100 MHz
- Insertion loss : < 3.6 dB
- Amplitude imbalance : 0.1 dB
- Isolation (S23) : > 25 dB
- Return loss at P1 : > 15 dB
- Return loss at P2, P3 : > 20 dB
- Maximum power : 0.2 W
- Maximum voltage : 50V
€69.00

Add to cart More

In Stock

Specialized RF and microwave modules

Directional couplers
Power splitters and combiners
DC blocks
Radio frequency amplifiers
Aluminium enclosures for RF PCB prototyping or small batch production

Applications

RF and microwave prototyping
Test and measurement equipment
Development of wireless communication systems
Research and development
Education

Recent posts

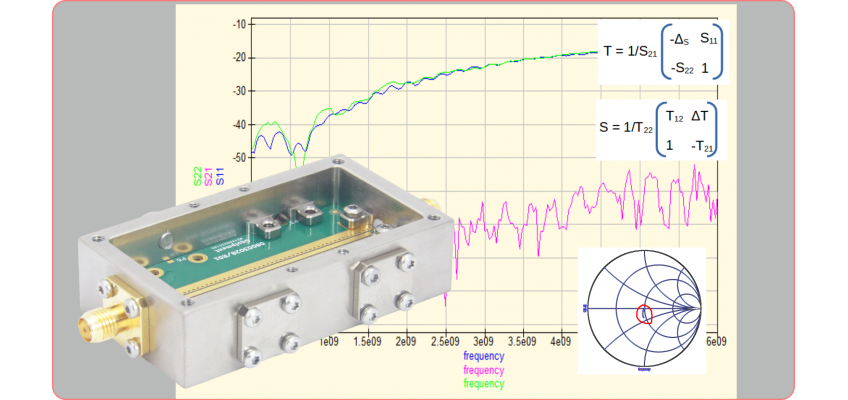

SMA connector performance in the RF Enclosure Mini used as a PCB test fixture

One of the most common reasons to use an RF enclosure from the Gquipment Mini series is to house some RF/microwave PCB to create...

Feb 6, 2021 1168

Online S-parameter viewer

Use the

Nov 15, 2020 1137

Everything You Should Know About Return Loss Measurements Using a Directional Coupler

Contents

May 13, 2019 15373

Power Splitters, Combiners, Couplers and Hybrids: A Taxonomy

The landscape of power splitters, combiners, couplers and hybrides can be daunting at first glance. However, when we classify these devices...

May 13, 2019 2563
