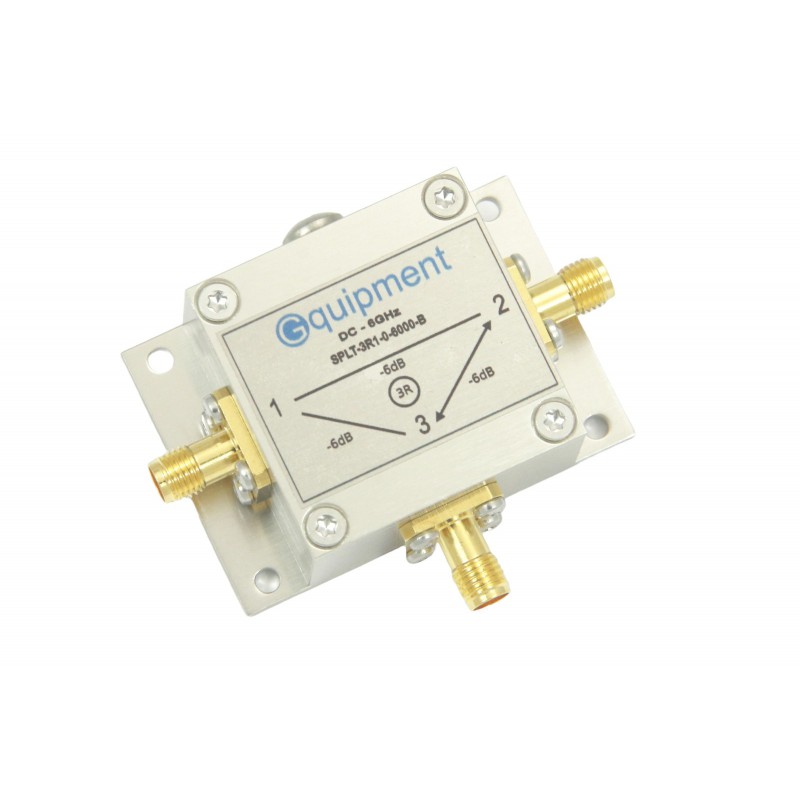

RF Power splitter 3R, 6 dB, 0-6GHz - With mounting flange

Reference: SPLT-3R1-0-6000-B-YF

  • Resistive splitter in 3R configuration
  • Frequency range : 0 - 6 GHz
  • Insertion loss and isolation : 6 dB
  • Return loss > 20 dB
  • Maximum power : 0.3 W
  • Maximum voltage : 50V

This module features two mounting flanges.

5 Items

62,50 €

More info

This three-port device splits power applied to one port between the other two. Conversely it can be used to combine two signals. Insertion loss and isolation between any two ports is 6dB (three resistor configuration).

The splitter/combiner is designed for 50 Ohm systems and exhibits a very low return loss at all SMA ports. The splitter is housed in a milled aluminium enclosure.

Download

Splitter in a 3R configuration, 0-6000 GHz, revision B - datasheet

Download (334.45k)
