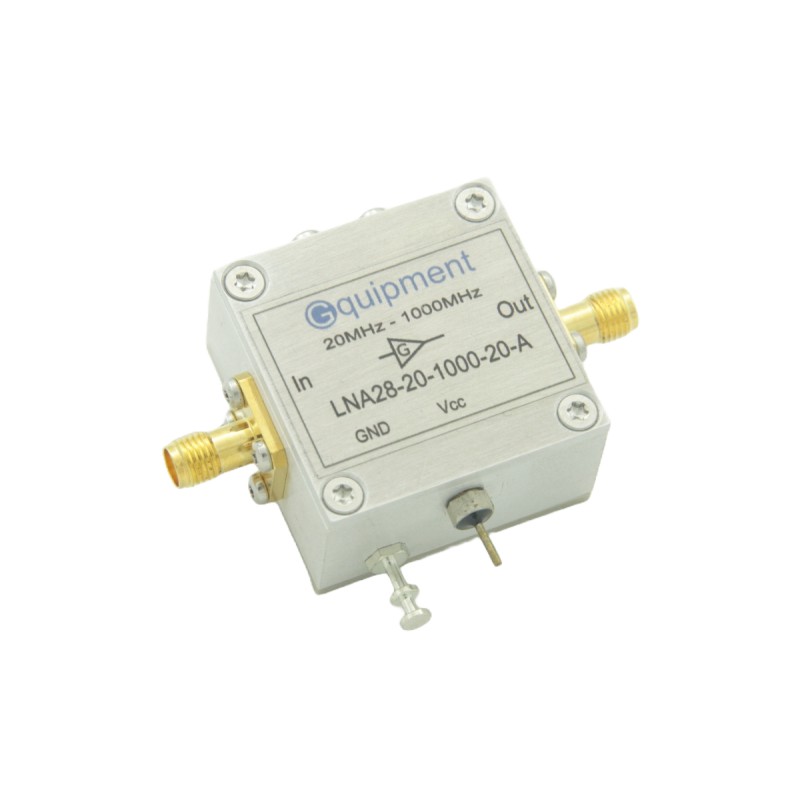

LNA, 20Mhz - 1GHz, 20dB
Reference: LNA28-20-1000-20-A-NF
Low noise amplifier, flat gain of 20dB, high IP3, 20MHz-1GHz.
Versatile RF amplifier.
4 Items
Volume discounts
| Quantity | Discount | You Save |
|---|---|---|
| 5 | 2% | Up to 8,15 € |
| 10 | 3% | Up to 24,45 € |
More info
Features
- Broadband amplifier with flat gain: 20 - 1000 MHz
- High linearity
- Temperature compensated
- Input voltage is regulated
- Two SMA ports, matched to 50 ohm
- Housed in a CNC machined aluminum enclosure
Key specifications
- Frequency range : 20Mhz - 1GHz
- Gain : 20 dB (+0 / -2dB)
- Noise figure : 2.8 dB
- IP3 : 40 dB
- IP1 : 20 dB
- Power supply : 6V
- Power consumption: 105 mA
Applications
- Low noise pre-amplifier
- Gain block
- Test and measurement systems
Download
LNA28-20-1000-20-A Datasheet
Download (315.65k)
