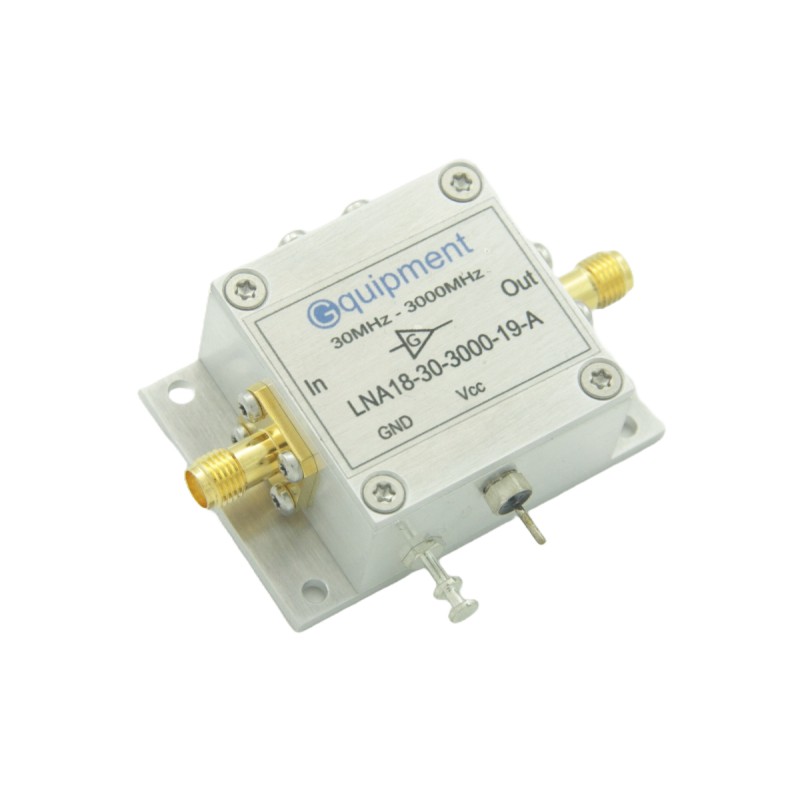

LNA, 30Mhz - 3GHz, 19dB with mounting flange
Reference: LNA18-30-3000-19-A-YF
Low noise amplifier, flat gain of 19dB, high IP3, 30 MHz-3GHz
Versatile RF amplifier.
This module features two mounting flanges.
3 Items Warning: Last items in stock!
Volume discounts
| Quantity | Discount | You Save |
|---|---|---|
| 5 | 2% | Up to 10,40 € |
| 10 | 3% | Up to 31,20 € |
More info
Features
- Broadband amplifier with flat gain: 30 - 3000 MHz
- High linearity
- Temperature compensated
- Input voltage is regulated
- Two SMA ports, matched to 50 ohm
- Housed in a CNC machined aluminum enclosure
Key specifications
- Frequency range : 30Mhz - 3GHz
- Gain 19 dB (+0 / -1dB)
- Noise figure : 1.8 dB
- Very linear
- IP3 : 35 dB
- IP1 : 19 dB
- Power supply : 3.5 - 6.5V, 55 mA
Applications
- Low noise pre-amplifier
- Gain block
- Test and measurement systems
Download
LNA18-30-3000-19-A Datasheet
Download (304.05k)
