Power splitter MT1, 3dB, 1-500MHz
Reference: SPLT-MT1-1-500-A-NF
Wilkinson power splitter with 3 dB insertion loss and high isolation between the two output ports. Wide bandwidth from 1 MHz to 500 MHz.
Can be used as a power splitter or combiner.
Used in the lab and in test and measurement equipment.
5 Items
More info
Features

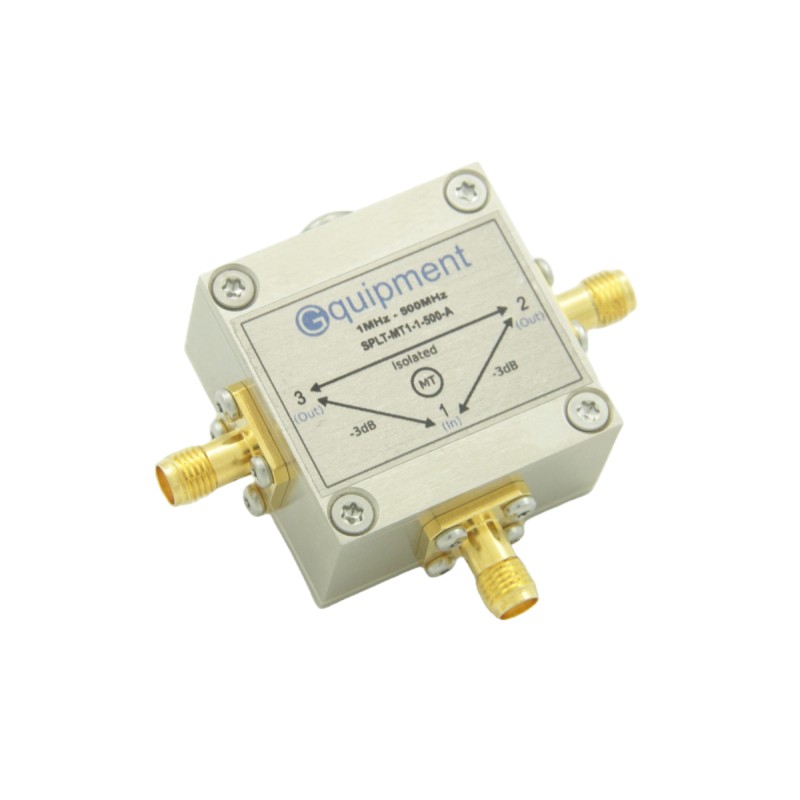

- Two way Wilkinson splitter
- Housed in a CNC machined aluminum enclosure
- 3 SMA connectors
- 50 ohm system
Key specifications
- Bandwidth : 1 - 500 MHz
- Insertion loss : < 3.7 dB
- Amplitude imbalance : 0.1 dB
- Isolation (S23) : > 20 dB
- Return loss at P1 : > 20 dB
- Return loss at P2, P3 : > 25 dB
- Maximum power : 0.2 W
- Maximum voltage : 50V
Applications
- Split or combine RF power signals
- Test and measurement systems
Download
Splitter Magic Tee, 1-500MHz datasheet
Download (330.92k)
