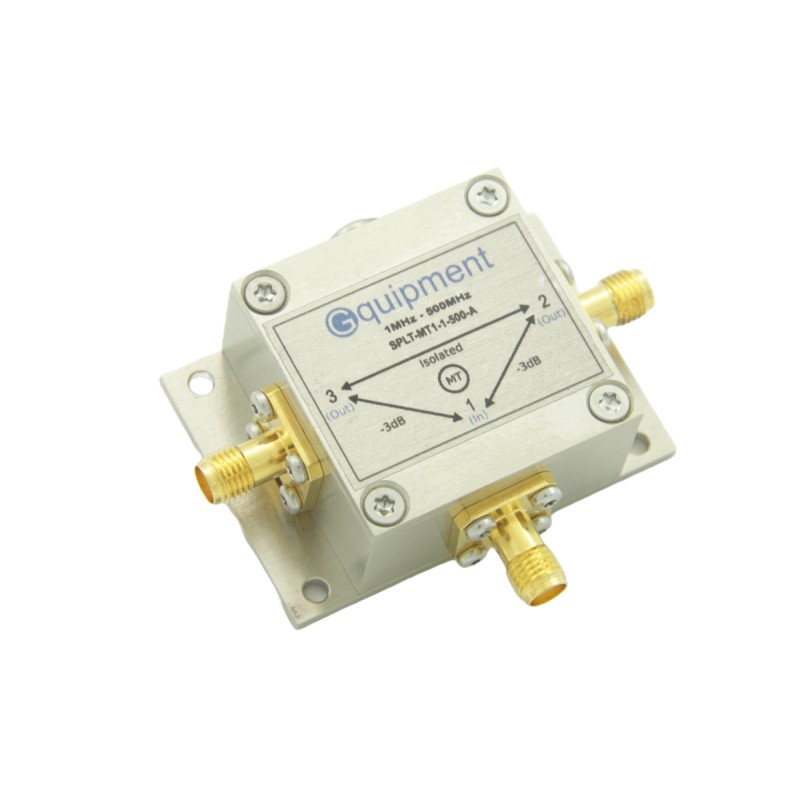

Power splitter MT1 -3dB 1-500MHz with mounting flange

SPLT-MT1-1-500-A-YF

New product

Wilkinson splitter based design

  • Bandwidth : 0.2 - 500 MHz
  • Insertion loss : < 3.7 dB
  • Amplitude imbalance : 0.1 dB
  • Isolation (S23) : > 20 dB
  • Return loss at P1 : > 20 dB
  • Return loss at P2, P3 : > 25 dB
  • Maximum power : 0.2 W
  • Maximum voltage : 50V

This module features two mounting flanges.

More details

5 Items

€72.00

More info

This three-port device splits power applied to one port (P1) between the other two (P2, P3). Conversely it can be used to combine two signals. Insertion loss (S21, S31) is designed to be 3 dB while maintaining a high degree of isolation between port 2 and 3.

The splitter/combiner is designed for 50 Ohm systems and exhibits a very low return loss at all SMA ports. The splitter is housed in a milled aluminium enclosure.

Download

SPLT-MT1-1-500-A-datasheet

Splitter Magic Tee 1 1-500MHz datasheet

Download (290.74k)
