> >>>SMA Connector (Female) Four holes - 18GHz - FX Enclosures

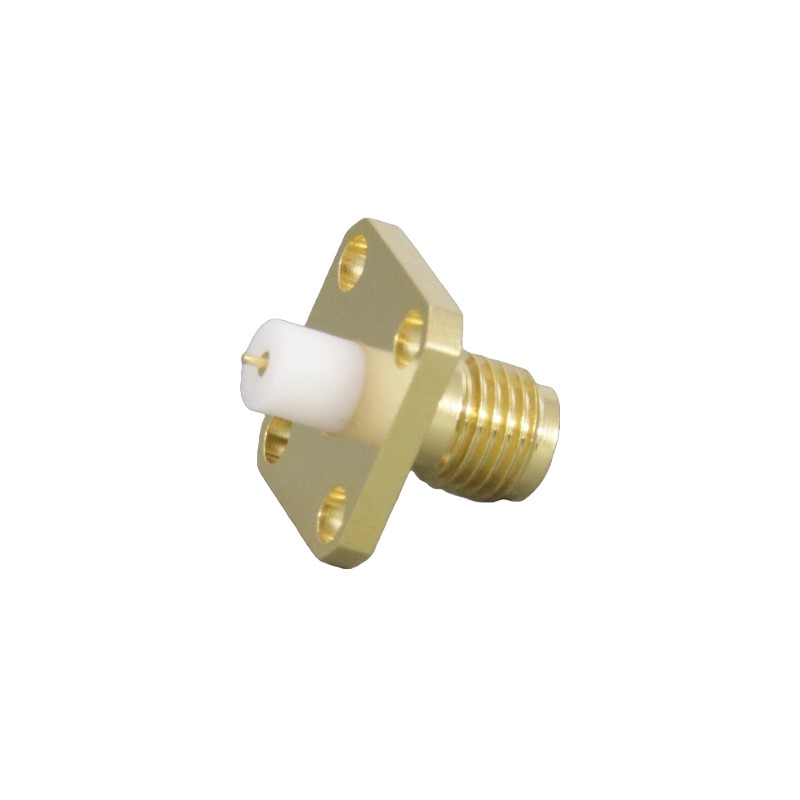

SMA connector (female) View larger

SMA Connector (Female) Four holes - 18GHz - FX Enclosures

SMA_CONN_FEMALE_FLANGE_4H_18G_FX

SMA connector compatible with the Gquipment RF Enclosure MINI (Extended) FX versions.

  • Frequency range : 0 - 18 GHz
  • Maximum VSWR : 1.5
  • Brass body

More details

10 Items

€15.18

More info

SMA female connector with rectangular flange.

Specifications:

  • Impedance : 50 Ohms
  • Frequency rating : 18 GHz
  • Maximum VSWR : 1.5
  • Pin diameter : 0.5 mm
  • Overall length : 14.5 mm
  • Brass body, gold plated
  • Isolation resistance : > 5000 MOhm
  • Center conductor : Beryllium copper, gold plated
  • Mating cycles : > 500
