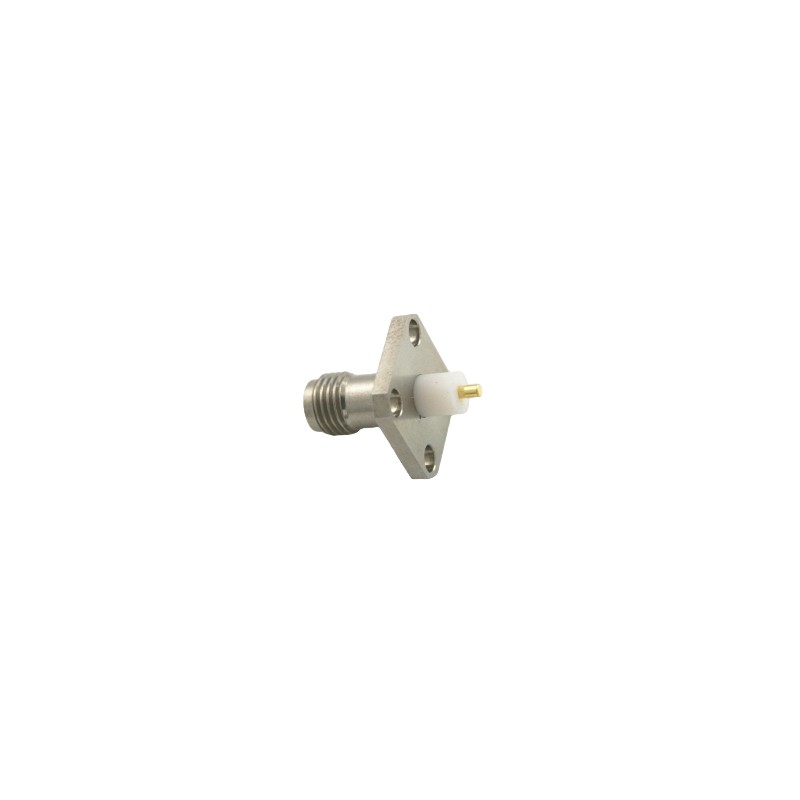

SMA Connector (Female) Four holes - 18GHz, stainless steel body
Reference: SMA_CONN_FEMALE_FLANGE_4H_18G_ST
SMA connector compatible with the Gquipment RF Enclosure MINI.
This connector is not compatible with the RF Enclosure MINI (Extended) FX versions.
- Frequency range : 0 - 18 GHz
- Maximum VSWR : 1.5
- Stainless steel body
10 Items
More info

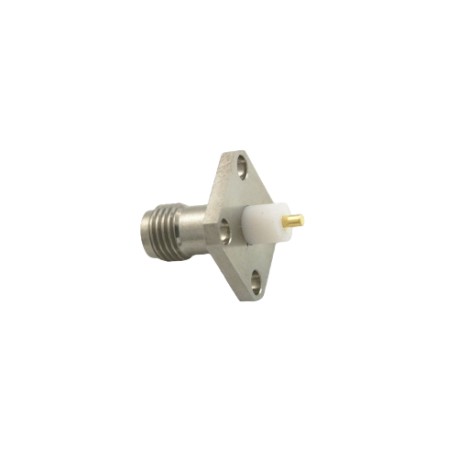

SMA female connector with rectangular flange.
Specifications:
- Impedance : 50 Ohms
- Frequency rating : 18 GHz
- Maximum VSWR : 1.5
- Pin diameter : 1.3 mm
- Overall length : 17.7 mm
- Stainless steel body, passivated
- Isolation resistance : > 5000 MOhm
- Center conductor : Beryllium copper, gold plated
- Mating cycles : > 500
See also :
SMA connector performance in the RF Enclosure Mini used as a PCB test fixture
Download
SMA connector outline
Download (110.8k)
