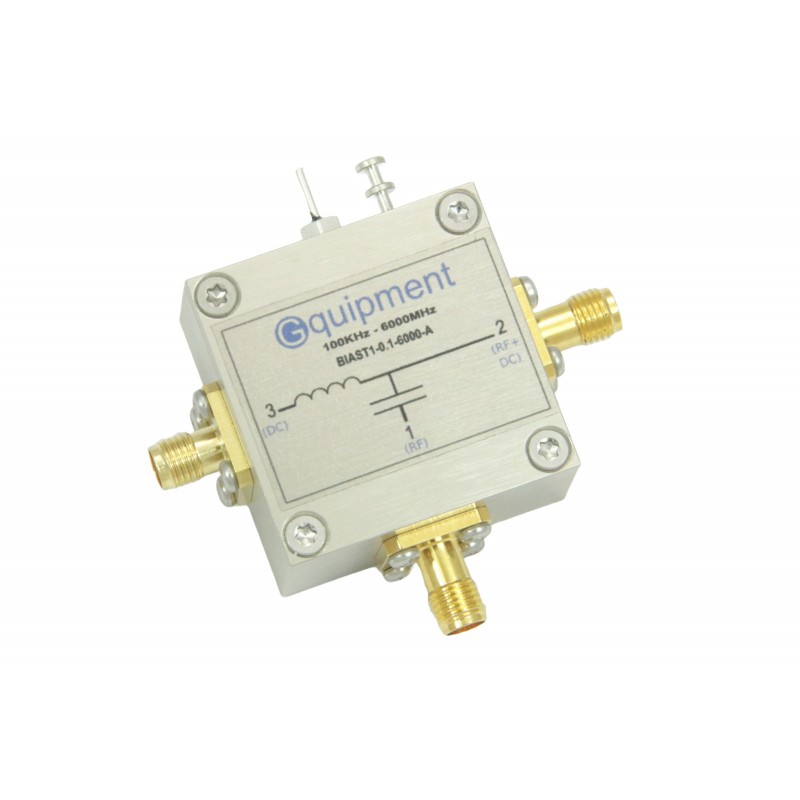

Bias-T, 100KHz - 6GHz

Features

• Inject or subtract DC power from an RF signal that travels through its RF ports.
• This bias tee has a wide operating range of more than 4 decades, running from 100 KHz up to 6 GHz.
• Low and flat insertion loss between the RF ports (< 1 dB).
• The RF ports are matched to 50 ohms and have a low return loss over their entire operation range.
• The isolation between the RF ports and DC power port is very high (> 35 dB).
• The DC power port is implemented both as an SMA connector and as a set of terminals (feedthrough capacitor and turret terminal).
• The bias tee is housed in a machined aluminum enclosure.

Key specifications

• Insertion loss: < 1 dB
• Isolation : > 35dB (typical)
• Return loss RF ports : < 20 dB
• Bandwidth : 100Khz - 6GHz
• Maximum voltage : 50V
