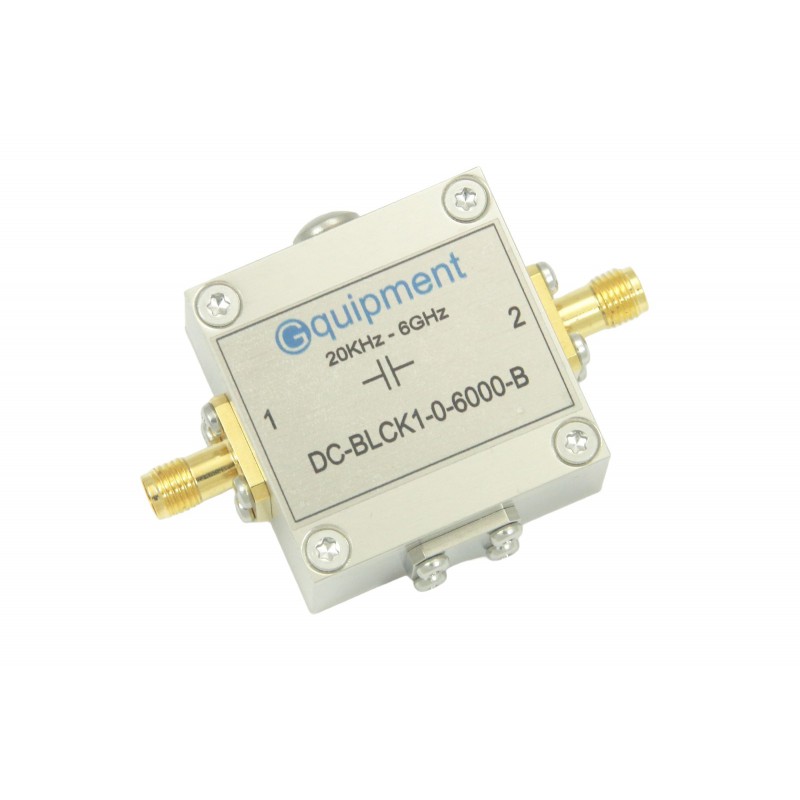

DC block 20 KHz - 6 GHz, aluminum enclosure

Features

• DC block with an inner block design (capacitor placed at the center conductor).
• It possesses a low cutoff frequency of 20Khz combined with an upper frequency range of 6 GHz. With this wide frequency span (over 5 decades) it is possible to use this DC-Block from the LF band all the way up to the UHF band.
• The DC block is designed for 50 Ohm systems and exhibits a very low return loss at both SMA ports.
• The DC block is housed in a CNC machined aluminum enclosure.

Key specifications

• Frequency range : 20 KHz - 6 GHz
• Insertion loss < 1.0 dB
• Return loss < -20 dB
• Maximum power : 0.4 W
• Maximum voltage : 50V

Additional information

Also, have a look at the DC-Block article from our blog.
