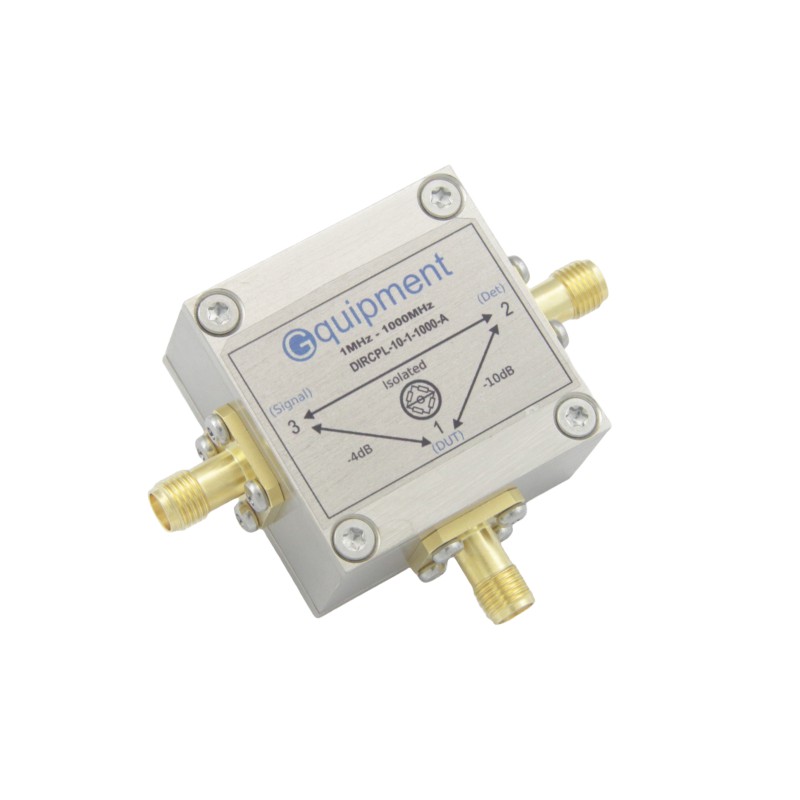

Directional coupler, 10dB coupling, 1-1000MHz
Reference: DIRCPL-10-1-1000-A-NF
High directivity of 30 dB over a wide operating range of 1 to 1000 MHz.
4 dB insertion loss and 10 dB coupling.
Applications:
- Return loss (VSWR) and power measurements
- Test and measuring systems
4 Items
Volume discounts
| Quantity | Discount | You Save |
|---|---|---|
| 5 | 2% | Up to 7,25 € |
| 10 | 3% | Up to 21,75 € |
More info
Features
- High directivity of 30 dB (typical)
- Good port match (DUT port) of better then 20 dB
- Housed in CNC machined solid aluminum enclosure.
- Three SMA ports
- 50 ohm system
Specifications
- Bandwidth : 1 - 1000 MHz
- Insertion loss : 4 dB
- Coupling : 10 dB
- Directivity : 30 dB (typical)
- Return loss at P1 (DUT port) : < -20 dB
- Maximum power : 0.2 W
- Maximum voltage : 50V
- Outer dimensions (width x depth x height) : 35 x 35 x 20 mm
Applications
- Directional coupler
- Test and measurement systems
- RF applications
Download
Datasheet Power splitter / Directional coupler 10dB, 1 - 1000MHz
Download (645.68k)
