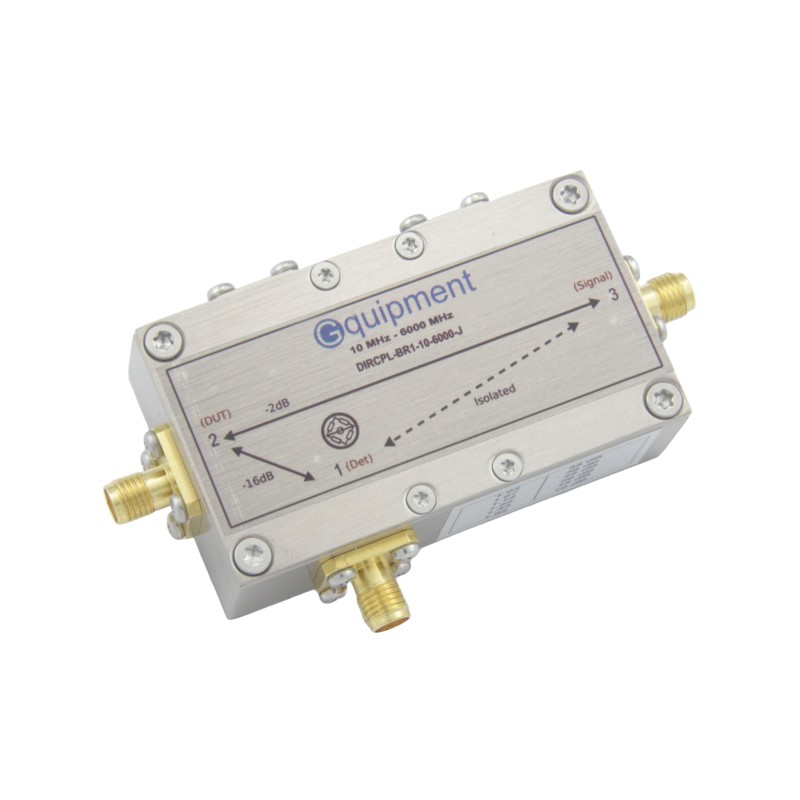

Directional coupler, 16dB coupling, 10-6000MHz
Reference: DIRCPL-16-10-6000-J-NF
High directivity of 30 dB over a wide operating range of 10 to 6000 MHz.
2 dB insertion loss and 16 dB coupling.
Applications:
- Return loss (VSWR) and power measurements
- Test and measuring systems
5 Items
Volume discounts
| Quantity | Discount | You Save |
|---|---|---|
| 5 | 2% | Up to 24,80 € |
| 10 | 3% | Up to 74,40 € |
More info
Features
- High directivity of 30 dB (typical)
- Good port match (DUT port) of better then 20 dB
- Housed in CNC machined solid aluminum enclosure.
- Three SMA ports
- 50 ohm system
Specifications
- Bandwidth : 10 - 6000 MHz
- Insertion loss : 2 dB
- Coupling : 16 dB
- Directivity : 30 dB (typical)
- Return loss at P1 (DUT port) : < -20 dB
- Maximum power : 20 dBm
- Maximum voltage : 50V
- Outer dimensions (width x depth x height) : 61.6 x 35 x 20.4 mm
Applications
- Directional coupler
- Test and measurement systems
- RF applications
