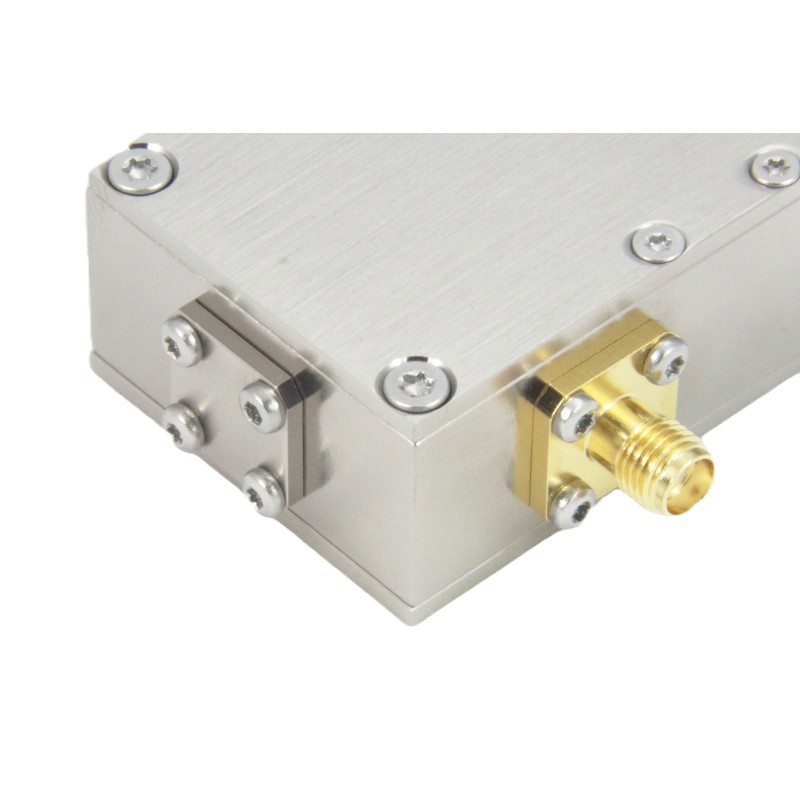

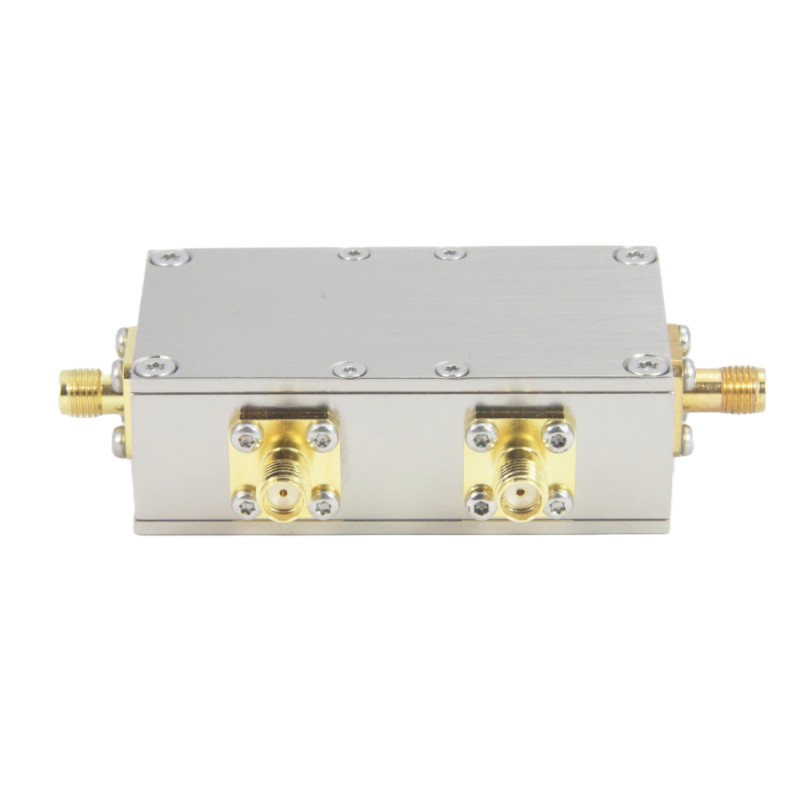

RF Enclosure Mini Extended FX - Aluminum

Order information: please select the correct "Number of SMA connectors".

RF enclosure features

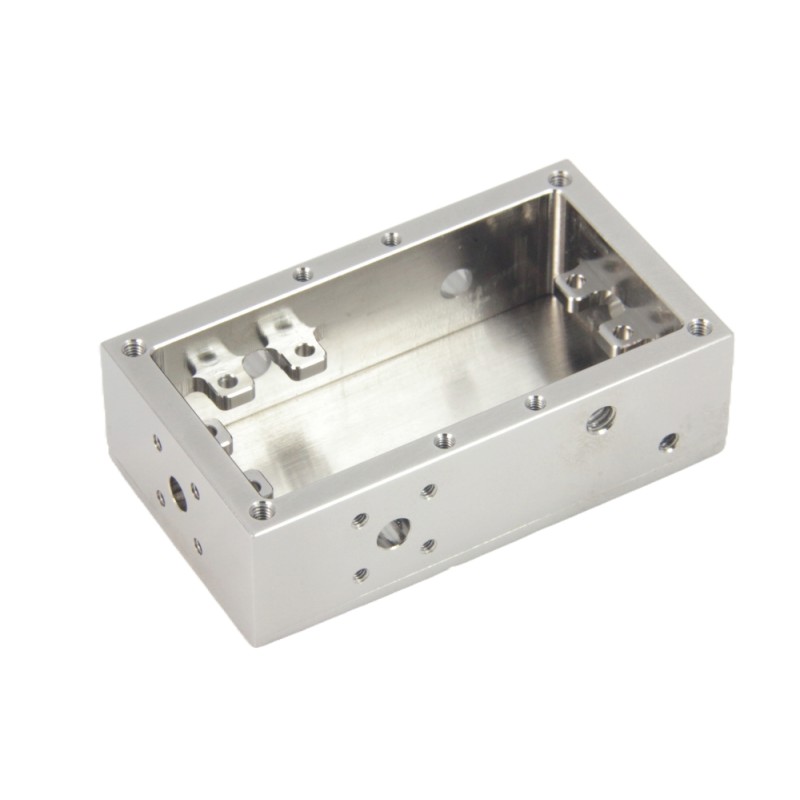

• The enclosures are made of CNC machined aluminum. The housing has dimensional tolerances of better than 0.1 mm.
• All components are nickel plated. This protects the surface of the components, gives the housing a lifespan of many decades and also ensures a low electrical contact resistance between all parts.

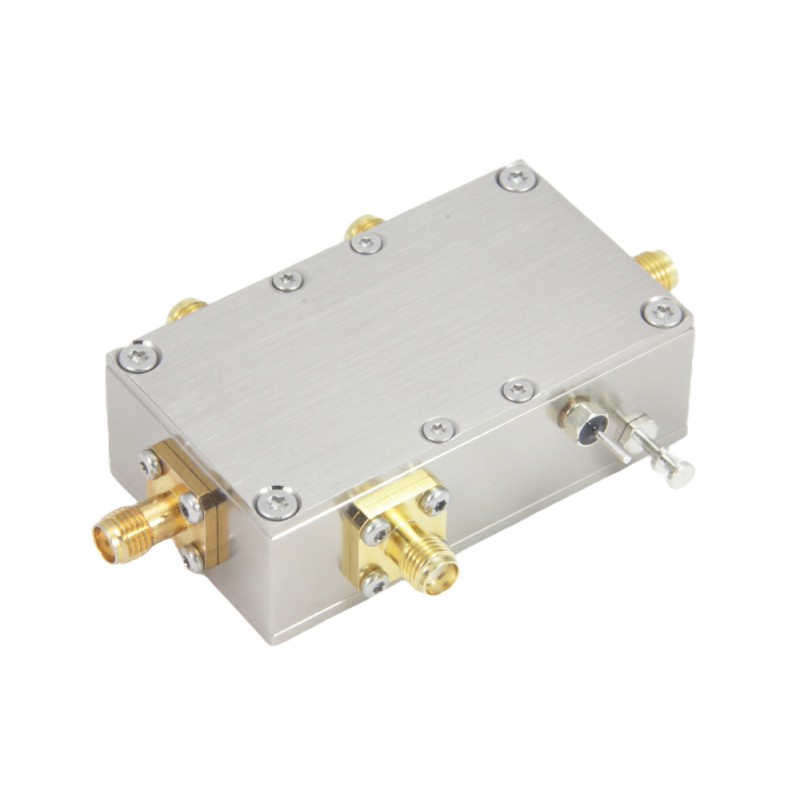

• You can power the unit by using a feed-through capacitor.
• There is a turret connector to create a solid ground connection

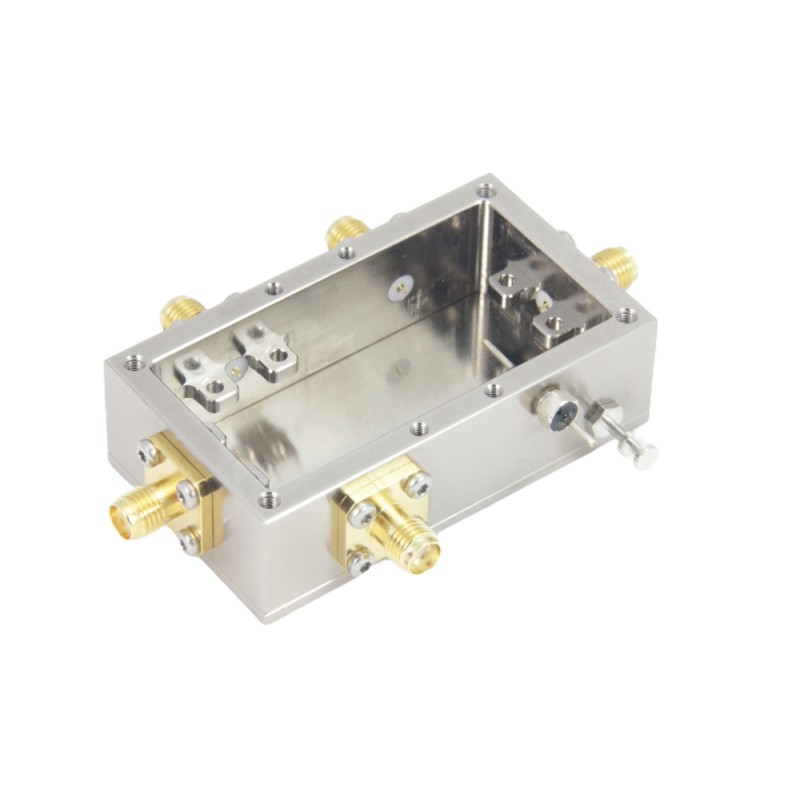

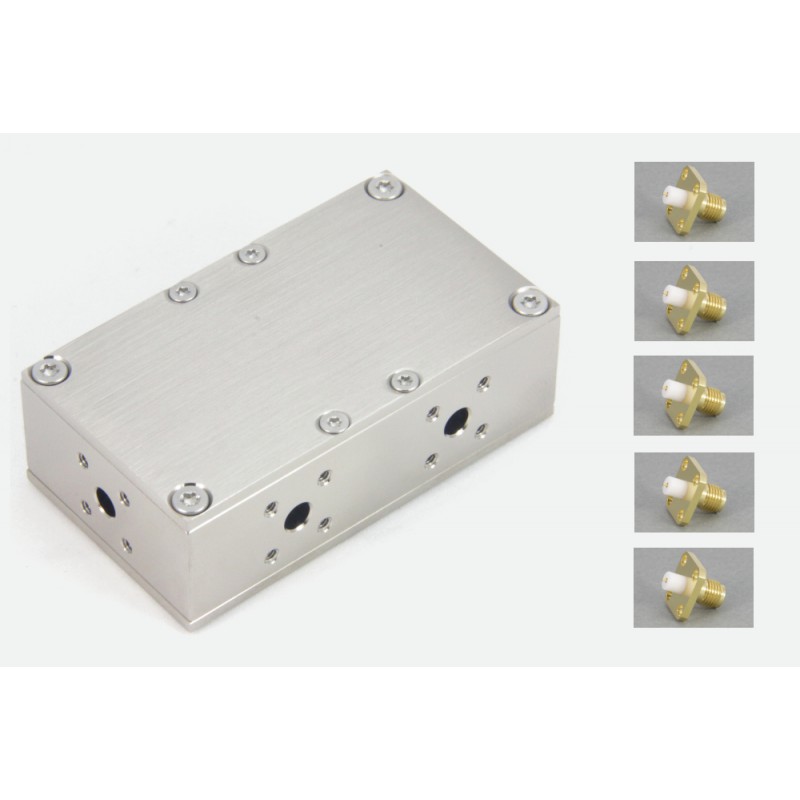

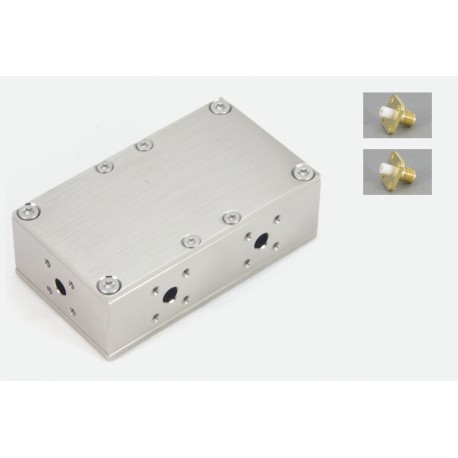

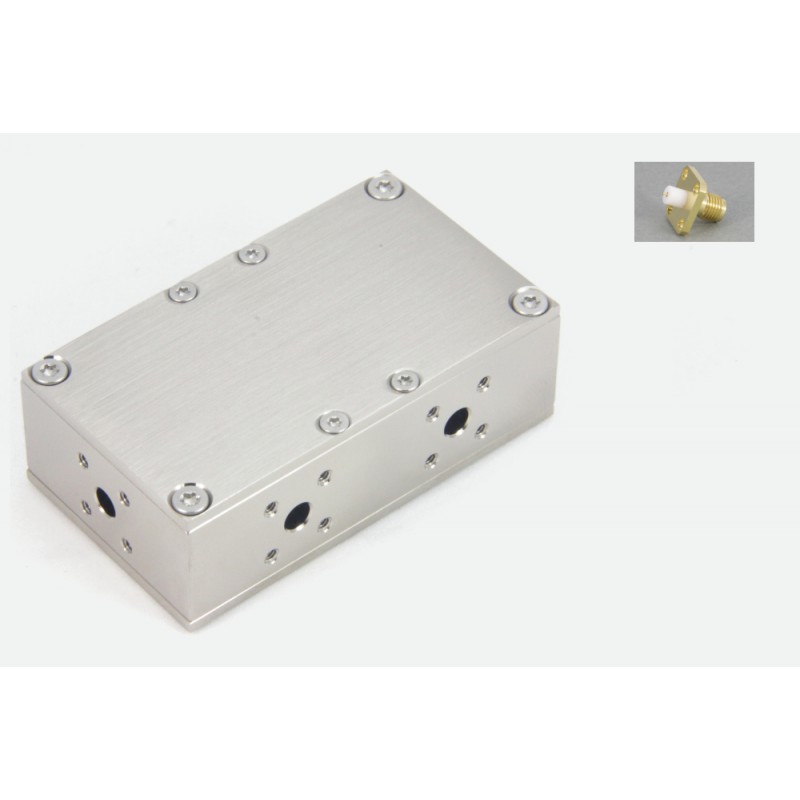

• The enclosures support 1 to 5 SMA connectors.
• SMA ports that are not used can be covered by SMA cover plates that have exactly the same dimensions as the SMA connector base plates.

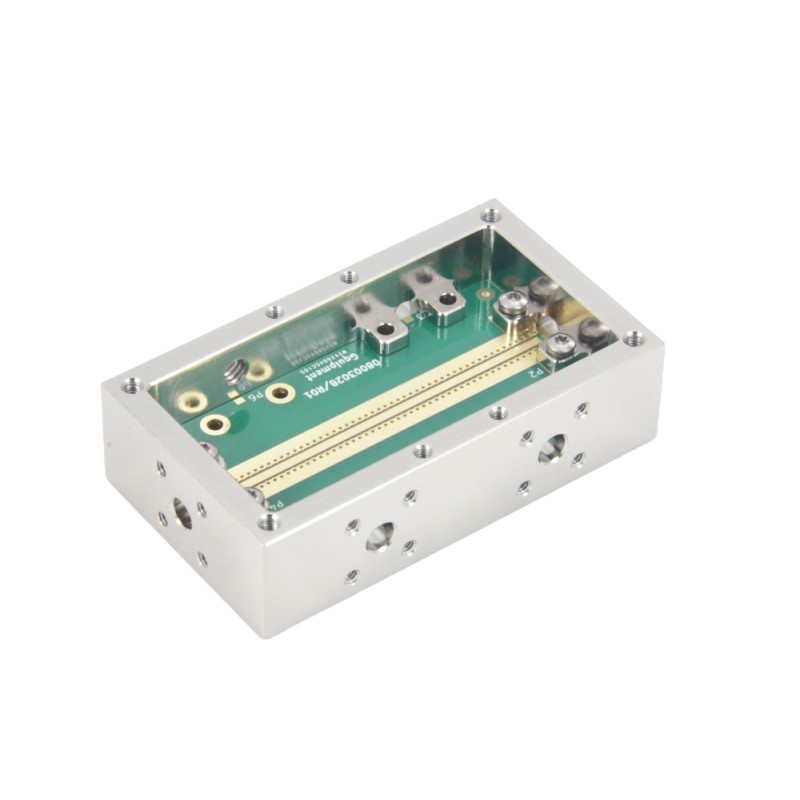

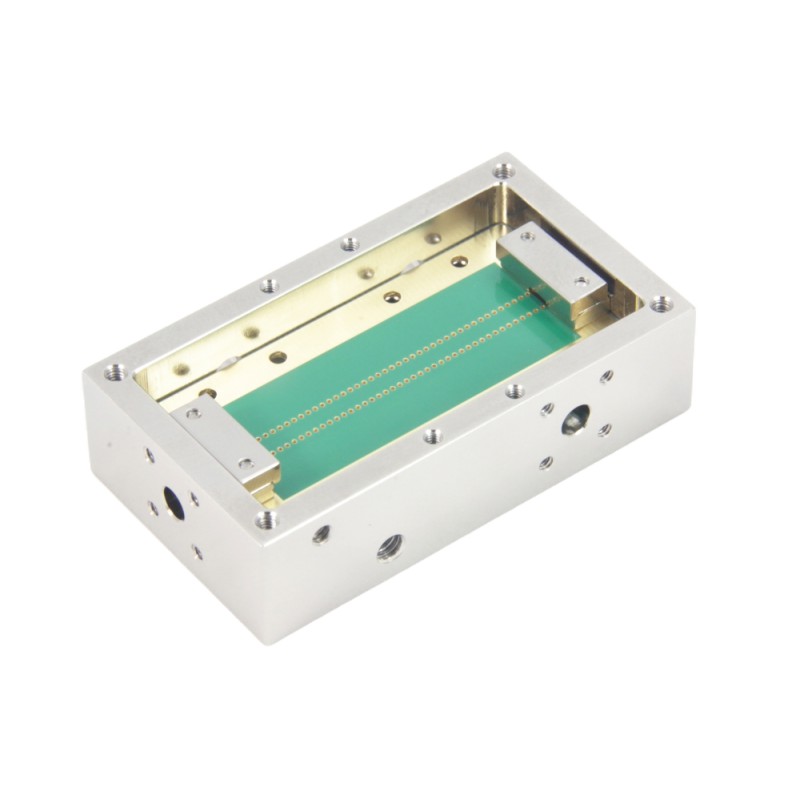

• Supports PCB thicknesses between 0 and 1.6 mm (63 mil). This is achieved by a construction that 'suspends' the PCB on mounting stubs.
• PCBs can be populated on both sides (top and bottom)
• Each unit comes with a complete set of screws, connectors and SMA cover plates
• The RF shielding of the enclosure is excellent because it is completely electrically closed.
• You can find some sample PCBs on Github. Use them as a template to get your project started quickly.

Key specifications

• Dimensions (width x depth x height) : 61.60 x 35 x 20.4 mm.
• Supported PCB thickness range : 0 - 1.6 mm (63 mil)
• Suggested PCB dimensions (width x depth) : 53.4 x 26.8 mm
• Number of SMA ports : 1..5

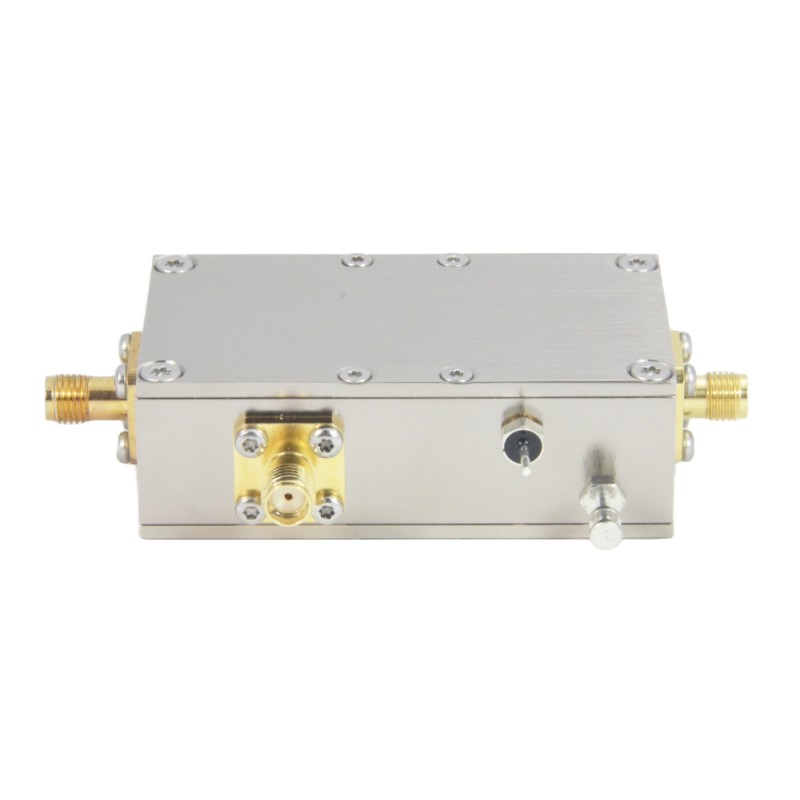

• Two terminals to apply power: feedthrough capacitor and turret terminal (enclosure GND)

Applications

• RF modules and prototyping
• Small batch production
• Test and measurement systems

Order information

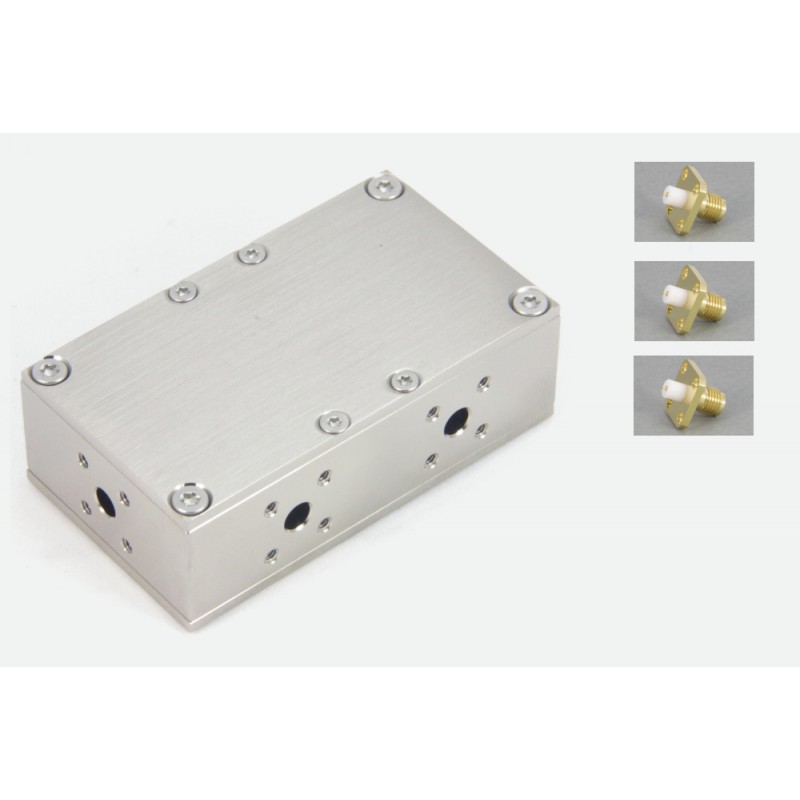

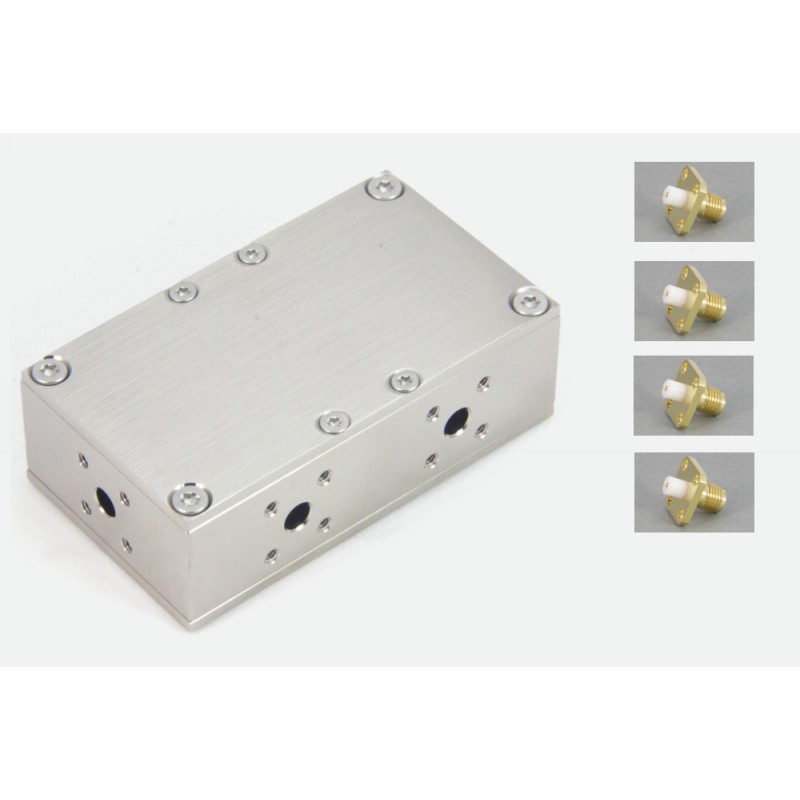

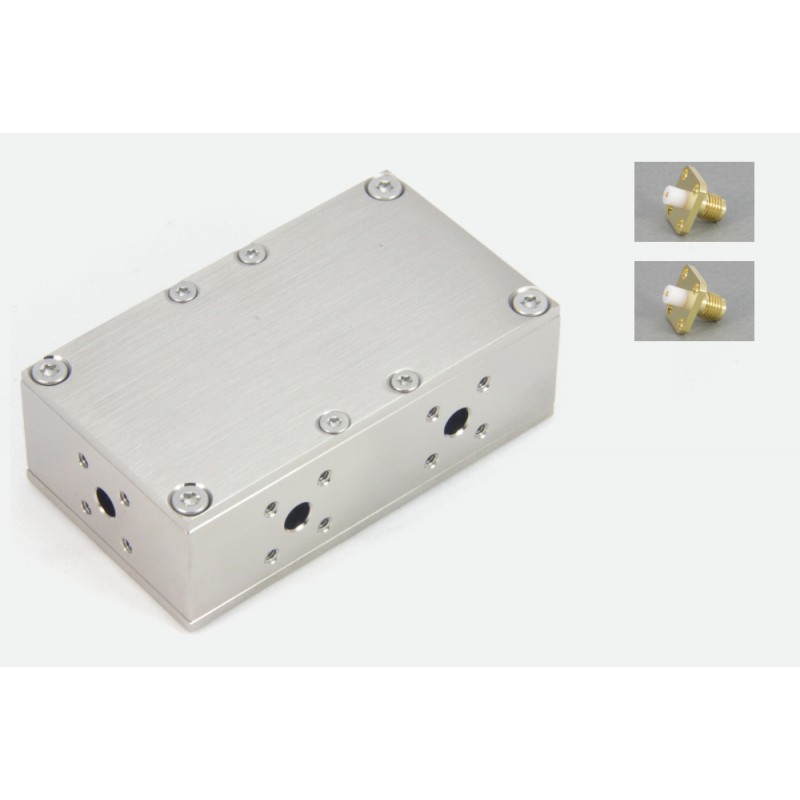

Specify the number of SMA connectors you want to use.
