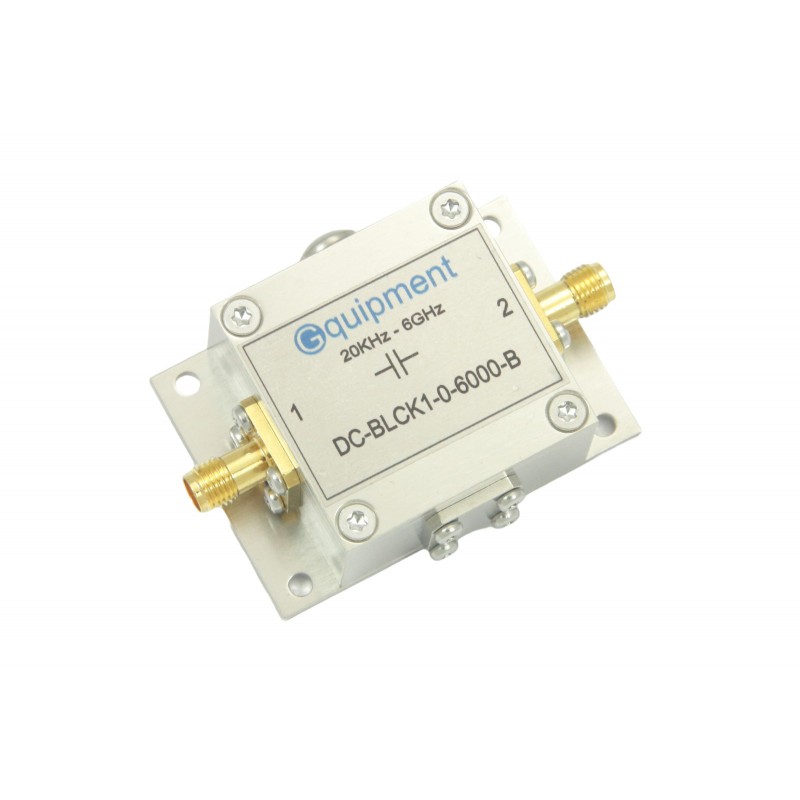

DC block 20 KHz - 6 GHz, Aluminium enclosure, With mounting flange View larger

DC block 20 KHz - 6 GHz, Aluminum enclosure, With mounting flange


DC block with an inner block design with very low cutoff frequency.

  • Frequency range : 20 KHz - 6 GHz
  • Insertion loss < 1.0 dB
  • Return loss < -20 dB
  • Maximum power : 0.4 W
  • Maximum voltage : 50V

This module features two mounting flanges.

More details

5 Items


Volume discounts

Quantity Discount You Save
5 2% Up to €6.29
10 3% Up to €18.89

More info

DC block with an inner block design (capacitor placed at the center conductor). It possesses an extremely low cutoff frequency of 20Khz combined with an upper frequency range of 6 GHz. With this extremely wide frequency span (over 5 decades) it is possible to use this DC-Block from the LF band all the way up to the UHF band.

The DC block is designed for 50 Ohm systems and exhibits a very low return loss at both SMA ports. The DC block is housed in a milled aluminium enclosure.

Also, have a look at the DC-Block article from our blog.



DC block, 0 - 6000MHz, revision B - datasheet

Download (368.37k)
