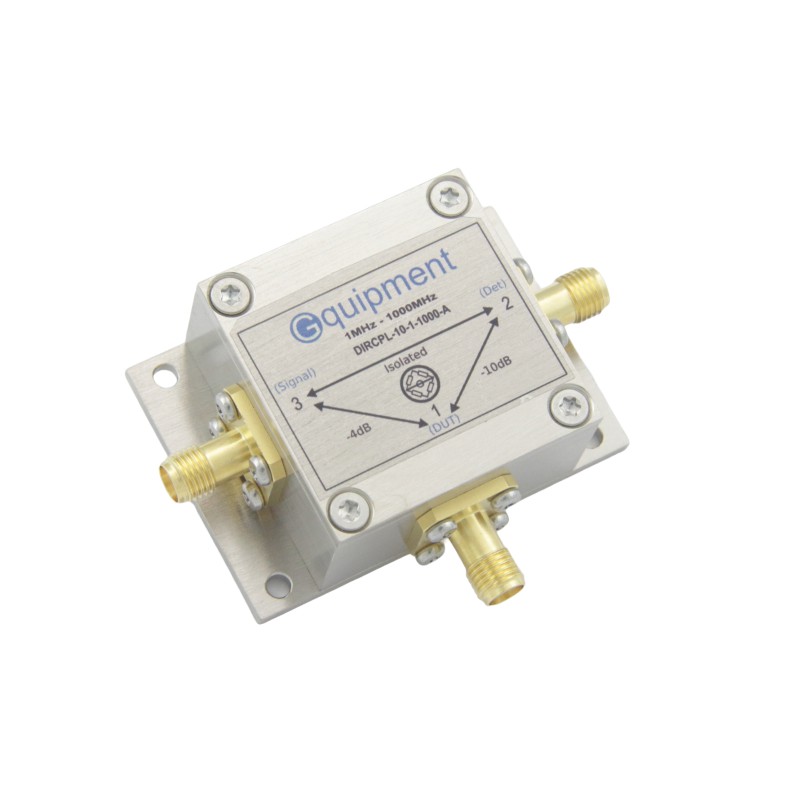

Directional coupler, 10dB coupling, 1-1000MHz with mounting flange

DIRCPL-10-1-1000-A-YF

Based on a resistive bridge design; excellent performance at the HF, VHF and well into the UHF band.

  • Bandwidth : 1 - 1000 MHz
  • Insertion loss : 4 dB
  • Coupling : 10 dB
  • Excellent directivity
  • Return loss at P1 (DUT port) : > -25 dB
  • Maximum power : 0.2 W
  • Maximum voltage : 50V

This module features two mounting flanges.

More details

1 Item

Warning: Last items in stock!

€73.00

Volume discounts

Quantity Discount You Save
5 2% Up to €7.30
10 3% Up to €21.90

More info

This directional coupler has an insertion loss of 4 db and a coupling of 10 dB. It is designed for 50 Ohm systems and exhibits a very low return loss at all SMA ports. The unit is housed in a milled aluminium enclosure.

Applications:

Download

dircpl-10-1-1000-A datasheet

Datasheet Power splitter / Directional coupler 10dB, 1 - 1000MHz
