Aluminum RF and mmWave Enclosures

Aluminum RF and mmWave Enclosures

for prototyping, testing and small volume production

  • Get your PCB into an enclosure without compromising RF performance
  • Replace your PCBs easily to test new revisions
  • Focus on the RF design task by eliminating the enclosure design and production phases altogether
RF Enclosure

An enclosure sized with RF and microwave circuits in mind

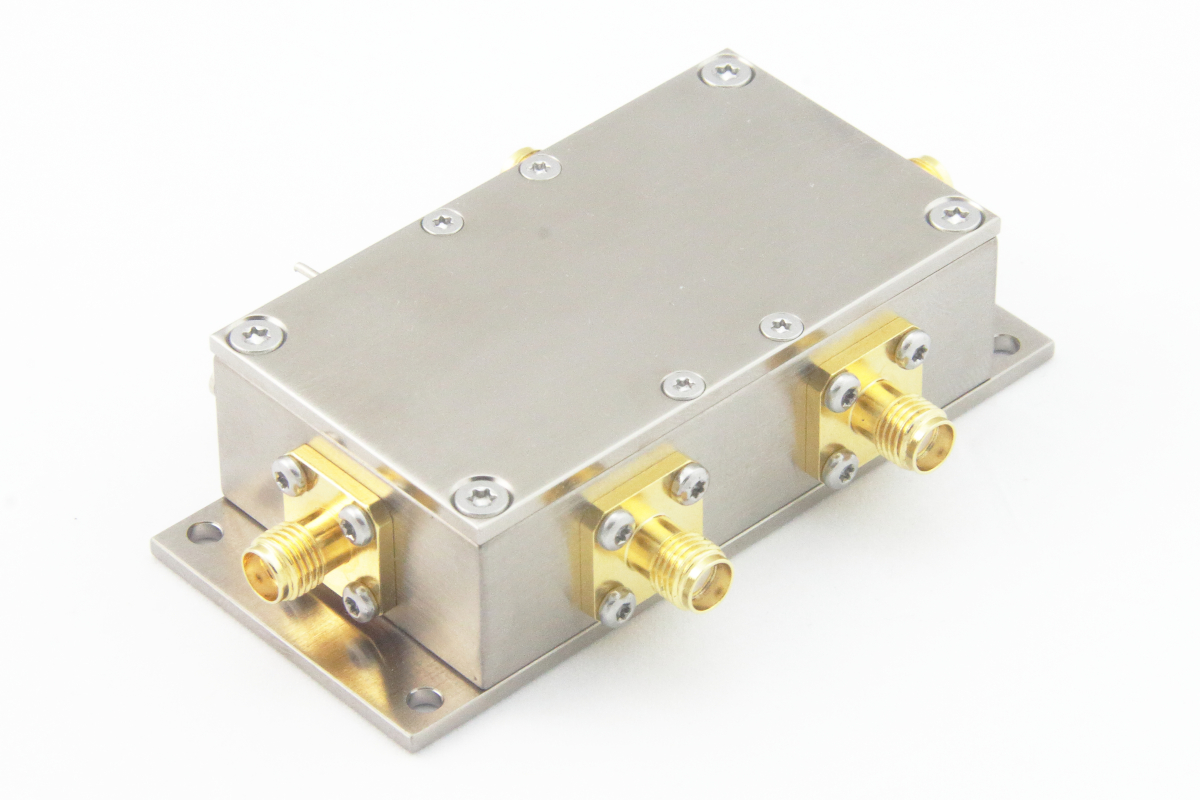

Three RF enclosures:

  • The MINI, for RF modules that typically implement only one RF function. It accommodates a PCB size of 26.6 x 26.6 mm (approximately 1 inch).
  • The EXT, which offers twice as much PCB surface area.
  • The SQR, which houses four times more PCB surface area than the MINI.

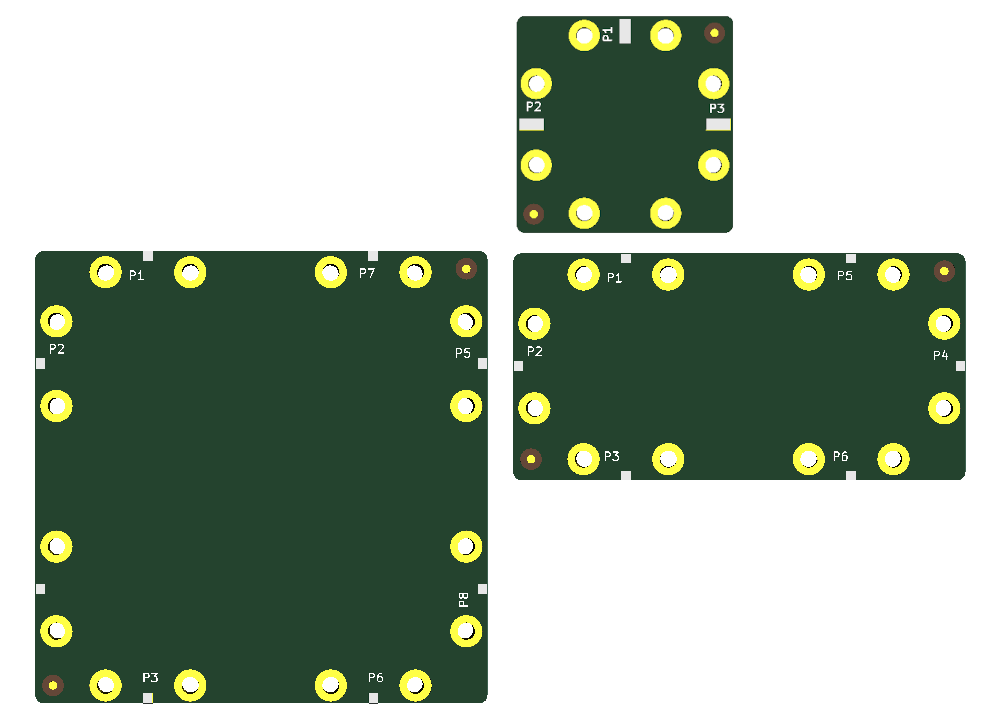

PCB sizes


RF ports

  • Choose how many you want to use
  • Unused ports are replaced by  cover plates


  • Turret terminal (DC ground)
  • Feedthrough capacitor (DC supply/control signal)
  • Unused elements are replaced by dummy screws

Reuse the enclosure

For new PCB revisions or new designs

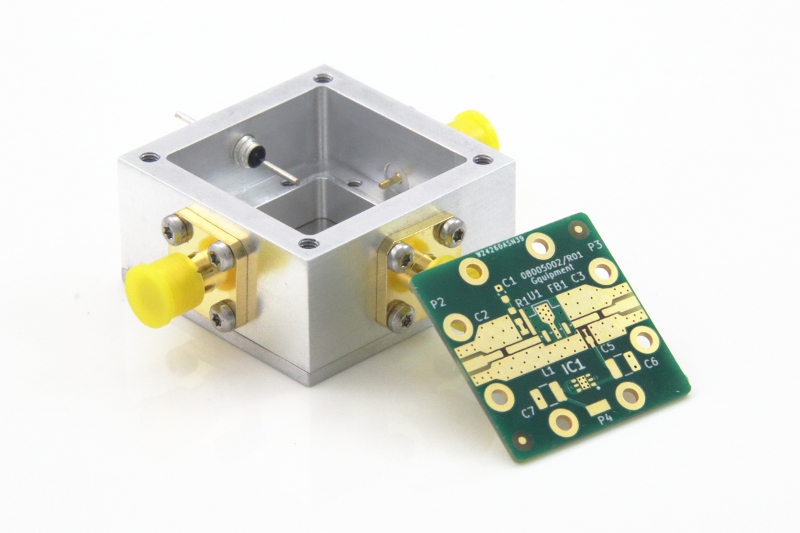

  • The SMA connectors and PCB are easily replaced.
  • The PCB is accessible by removing the top cover.
  • The bottom cover can also be removed.

PCB thickness

  • MINI-FX: supports all practical PCB thicknesses between 0 and 1.6 mm
  • MINI: supports PCB thicknesses between 0.8 and 1.2 mm (depending on the SMA connector type)

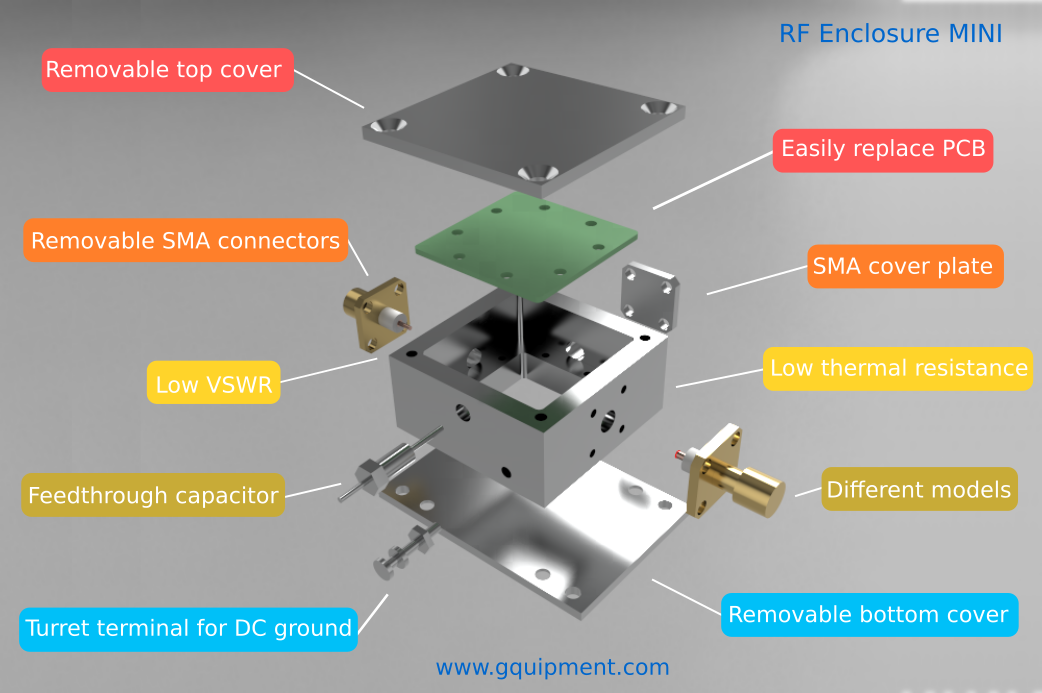

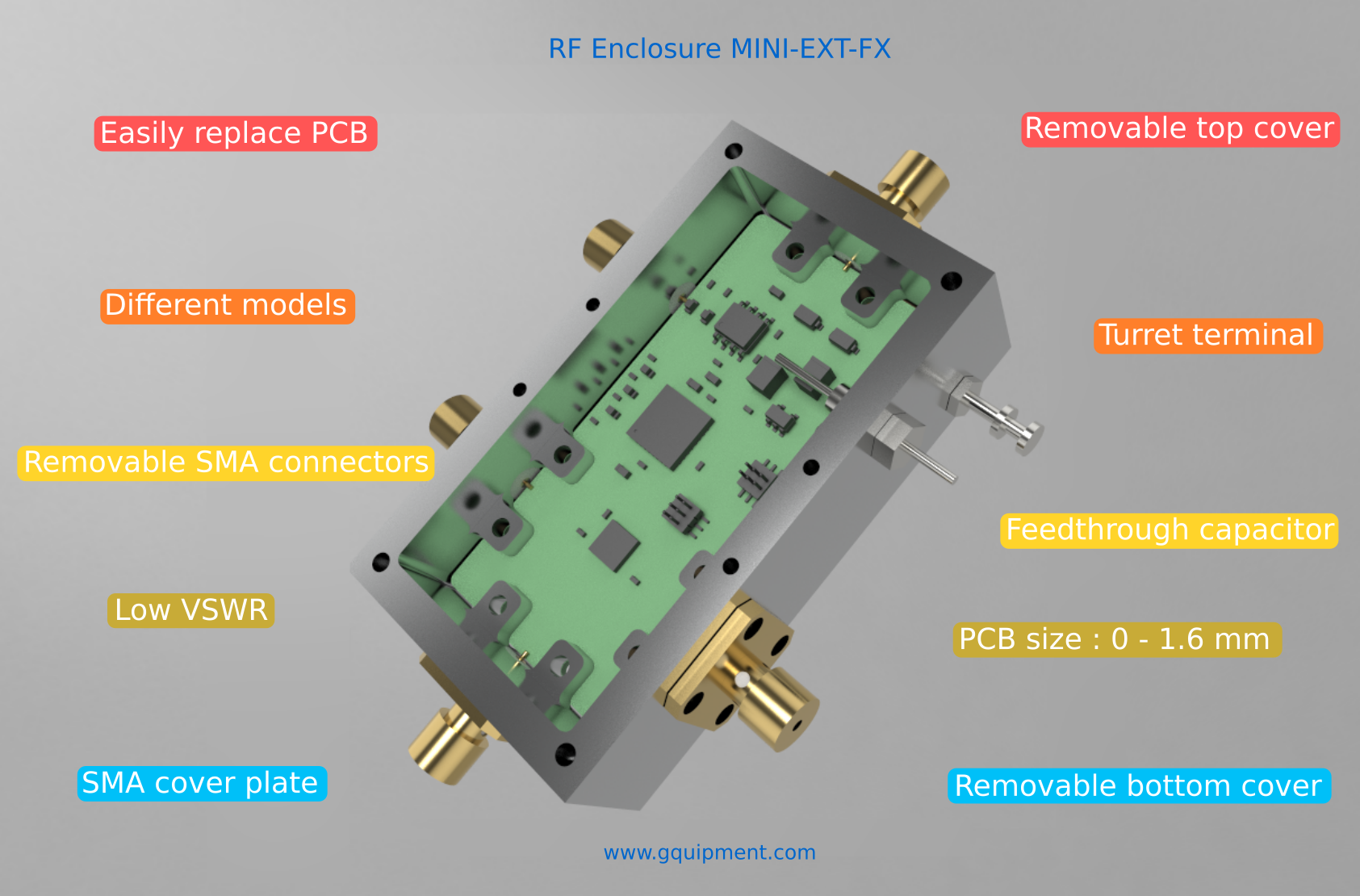

RF-enclosure MINI infographic RF-Enclosure EXT-FX infographic

Designed for RF circuits

Much attention was paid to the design of the enclosure to make it an excellent choice for your next RF project. Don’t let your critical design prototype be ruined by undefined RF behavior because you didn’t use a proper RF enclosure.

  • A very low inductance path from the PCB to the enclosure and SMA connectors
  • SMA port construction with a very low VSWR
  • The RF enclosure works as an excellent EM shield
  • Very high dimensional accuracy, which is a best practice in microwave design

Well documented

To kick-start your work, our enclosures come with a set of engineering documents:

  • Accurate mechanical drawings (data sheet)
  • Suggested PCB layout, including the mounting holes (datasheet)

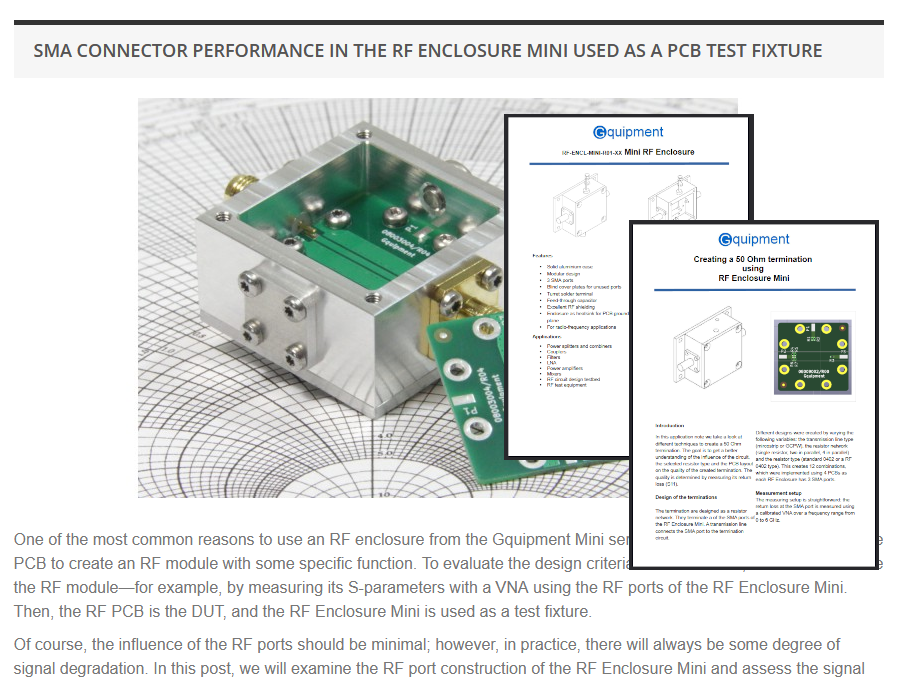

  • SMA port return loss analyses using a PCB reference design (application note)
  • Level of isolation between the SMA ports (application note)
Well documented

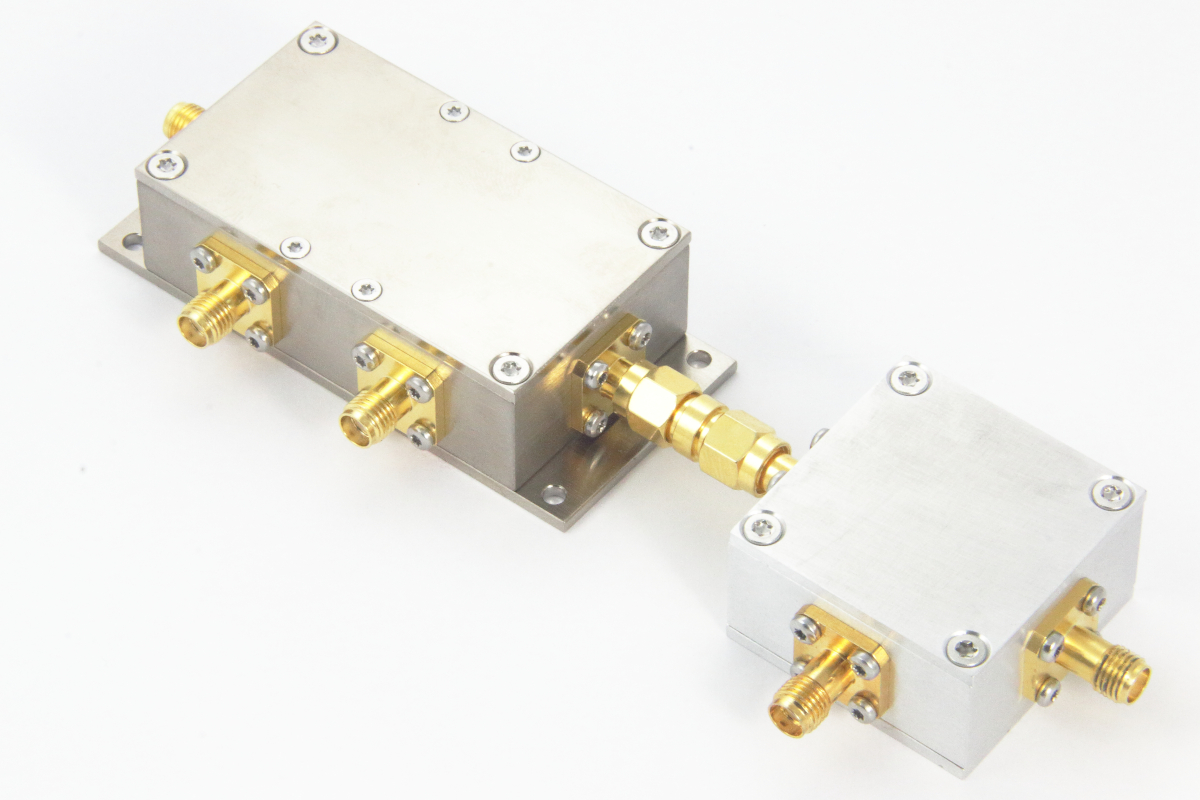

Every RF enclosure can be used as is, by itself. And because all models feature the same SMA connector position in the z-direction (all at the same height), they can be connected using "through" connectors.

RF-Enclosure MINI compatibility

Technical support

We would be more than happy to answer all your questions. Please feel free to contact us!


  • As the enclosure for your next RF project
  • As an RF PCB test fixture
  • For small-series productions of RF applications

What you get

  • Excellent build quality
  • Answers to all your questions within 24 hours
  • Delivery from stock

RF Enclosure MINI-EXT-FX


(thumbnail)IDRF PortsLF PortsTurret
Feed through
PCB dimensions
PCB thickness
RF-ENCL-MINI-YF-01 3 0 1 1 26.8 x 26.8 0.8 - 1.2 *
RF-ENCL-MINI-NF-01 3 0 1 1 26.8 x 26.8 08 - 1.2 *
RF-ENCL-MINI-EXT-FX-YF-01 4 1 1 1 53.4 x 26.8 0 - 1.6
RF-ENCL-MINI-EXT-FX-NF-01 4 1 1 1 53.4 x 26.8 0 - 1.6
RF-ENCL-MINI-SQR-FX-YF-01 6 1 1 1 53.4 x 53.4 0 - 1.6
RF-ENCL-MINI-SQR-FX-NF-01 6 1 1 1 53.4 x 53.4 0 - 1.6

* : depending on SMA connector type
